MSD 7AL / K&R Question

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • MSD 7AL / K&R Question

    Click image for larger version

Name:	IMG-1305.jpg
Views:	49
Size:	110.6 KB
ID:	1166

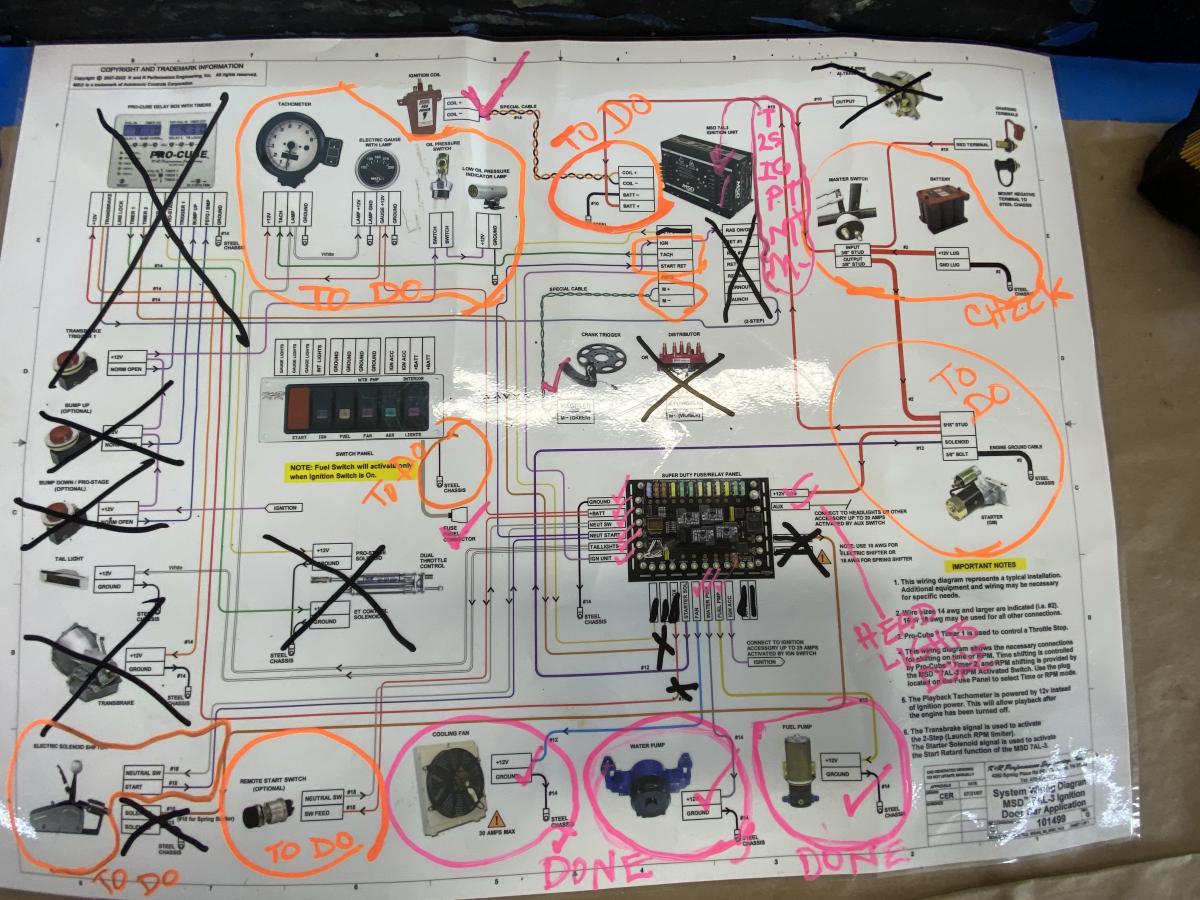

    I'm in the process of rewiring me wagon, as it was a mess of cuts and spices when it was built. I'm at the point of wiring up the box and they're showing a 7AL3 and I have a 7AL2. A couple of terminals are labeled the same, but as you can see from the wiring diagram and my box there are a few wires I'm not sure of.

    I assume that the wire they show going to IGN second from top is IG the third down on mine.
    I assume that TACH they show 3rd down is T on Top

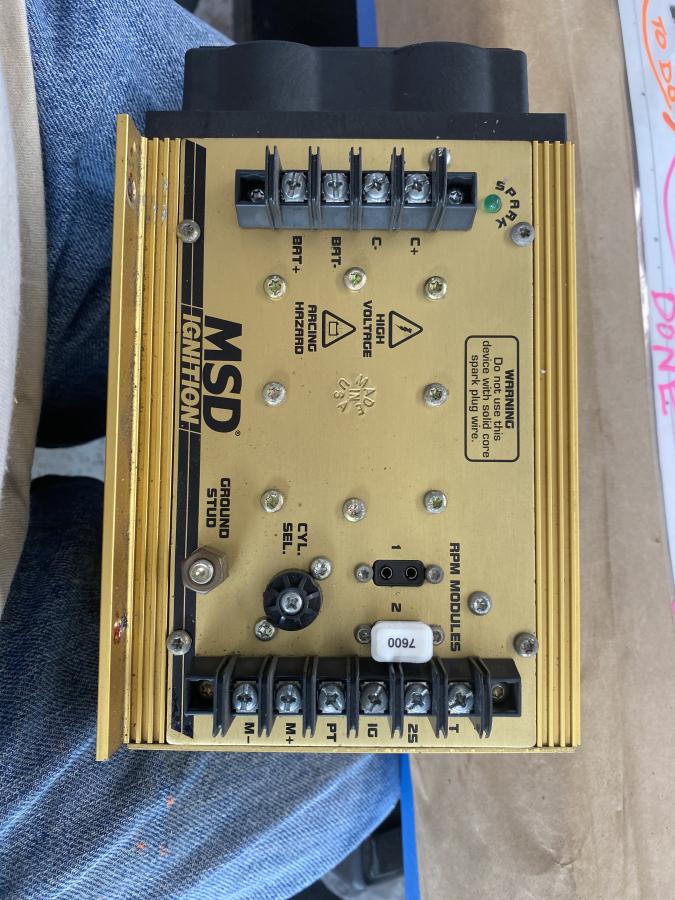

    That leaves they violet Neutral Start wire going to Start Retard 4th down the MSD on the diagram. What is either 25 or 2S on my box?


    Click image for larger version

Name:	IMG-1308.jpg
Views:	40
Size:	184.4 KB
ID:	1167
    Please register to post, add this forum to your Browser's start tabs &actively participate!

  • #2
    So T = Tach
    . IG = IGN
    . 2S - 2-step

    There is not start retard that K&R can deal with in a 7AL2
